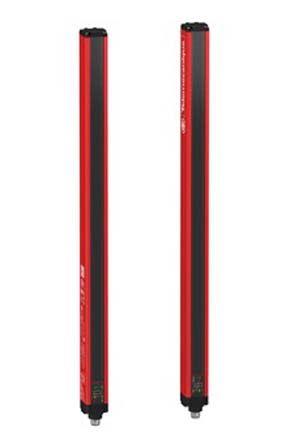

Light Curtain, T4, Res. 30mm, H 1060mm

Technical Reference

Attribute	Value
Terminal Type
Supply Voltage	24 V
Output Type	PNP
Manufacturer	Schneider Electric
Number of Beams	53
Features	Automatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
Series	XUSL4E
Product Range	Preventa
Response Time Max	14 ms
Brand	Schneider Electric
Protective Area Height	1060 mm
Sensing Distance Max	12000 mm
Beam Resolution	30 mm
Height	1113 mm
Protection Type	Hand Protection
PL (EN ISO 13849-1)	PL e
Length	31 mm
Maximum Protective Width
Sensing Distance Min	0 mm
Component Type	Sender, Receiver
Dimensions	31 x 29.4 x 1113 mm
Width	29.4 mm
Safety Type	4
SIL (IEC 61508)	SIL 3
