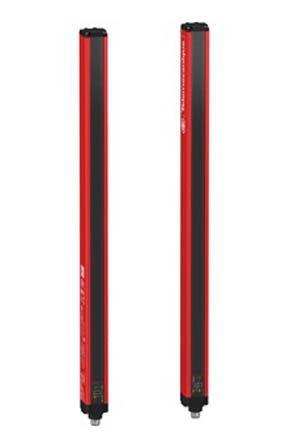

Schneider Electric Light Curtain, T4, Res. 30mm, H 1810mm

RS Stock No: 1278316

Mfr Part No: XUSL4E30H181N

Brand: Schneider Electric

Light Curtain, T4, Res. 30mm, H 1810mm
Unavailable
£3,042.00(exc. VAT)
£3,650.40(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Terminal Type
Supply Voltage24 V
Output TypePNP, 2 OSSD
ManufacturerSchneider Electric
Number of Beams91
FeaturesAutomatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
SeriesXUSL4E
Product RangePreventa
Response Time Max22 ms
BrandSchneider Electric
Protective Area Height1810 mm
Sensing Distance Max12000 mm
Beam Resolution30 mm
Height1863 mm
Protection TypeHand Protection
PL (EN ISO 13849-1)PL e
Length31 mm
Maximum Protective Width
Sensing Distance Min0 mm
Component TypeSender, Receiver
Dimensions31 x 29.4 x 1863 mm
Width29.4 mm
Safety Type4
SIL (IEC 61508)SIL 3
