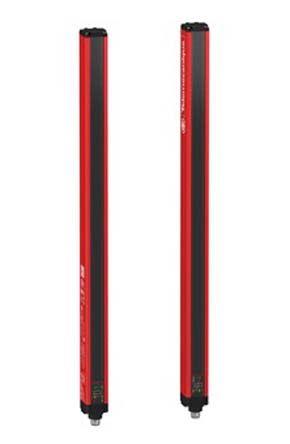

Light Curtain, T4, Res. 30mm, H 610mm

Technical Reference

Attribute	Value
Terminal Type
Supply Voltage	24 V
Output Type	PNP, 2 OSSD
Manufacturer	Schneider Electric
Number of Beams	31
Features	Automatic/Manual Restart, 2 PNP Output, Multi-Colour LEDs
Series	XUSL4E
Product Range	Preventa
Response Time Max	6 ms
Brand	Schneider Electric
Protective Area Height	610 mm
Sensing Distance Max	20000 mm
Beam Resolution	30 mm
Height	663 mm
Protection Type	Hand Protection
PL (EN ISO 13849-1)	PL e
Length	31 mm
Maximum Protective Width
Sensing Distance Min	3000 mm, 0 mm
Component Type	Sender, Receiver
Dimensions	31 x 29.4 x 663 mm
Width	29.4 mm
Safety Type	4
SIL (IEC 61508)	SIL 3
