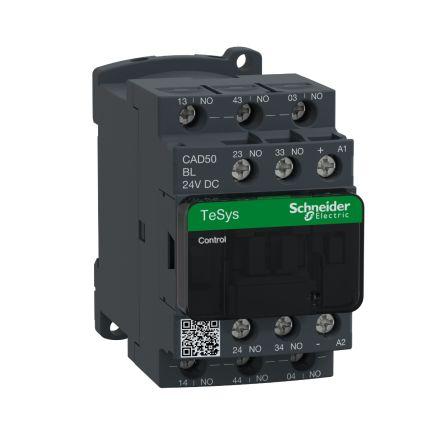

Schneider Electric TeSys CA CAD5 Contactor, 24 V dc Coil, 10 A, 5NO

Technical Specifications

Attribute	Value
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+70 °C
Terminal Type	Screw
Function
Operational Current	10 A
Mounting Style	Screw, DIN-Rail
Standards/Approvals	CSA, CCC, EAC, IEC, UL, RoHS
Width	45 mm
Length	77 mm
Brand	Schneider
Auxiliary Contact Configuration
Coil Voltage [VAC]
Manufacturer	Schneider
Number of Auxiliary Contacts	1
Contact Voltage Rating [VAC]	690
Contactor Application	Motor Control
Coil Voltage [VDC]	24
Interlocking type
Power Rating [KVA]
Power Rating [KVAR]
Utilisation category	AC-15, AC-14, DC-13
Control Circuit Voltage Uc	24 V
Pole and Throw Configuration	3P
Contact Current Rating [AC]	10
Depth	86 mm
Power Rating [kW]	0.07
Contact Voltage Rating [VDC]
Number of Poles	3
Series	CAD5
Contact Current Rating [DC]
Normal State Configuration	5 NO
