Schneider Schneider Electric TeSys CA Contactor, 48 V Coil, 1 Pole, 10 A, 1NO + 1NC

RS Stock No: 2201215

Mfr Part No: CA2SK11E7

Brand: Schneider

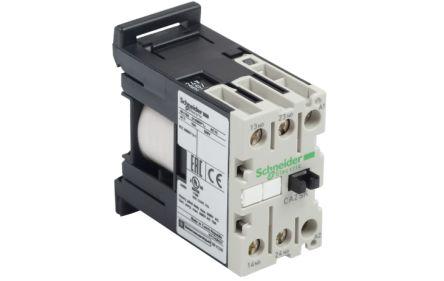

Schneider Electric TeSys CA Contactor, 48 V Coil, 1 Pole, 10 A, 1NO + 1NC
Out of stock
£40.16(exc. VAT)
£48.19(inc. VAT)
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-25 °C
Maximum Operating Temperature+50 °C
Terminal TypeScrew
Function
Operational Current10 A
Mounting StyleScrew, DIN-Rail
Standards/ApprovalsIEC 60947
Width27 mm
Length56 mm
BrandSchneider
Auxiliary Contact Configuration1 NC, 1 NO
Coil Voltage [VAC]48
ManufacturerSchneider
Number of Auxiliary Contacts2
Contact Voltage Rating [VAC]690
Contactor ApplicationControl Circuit
Coil Voltage [VDC]
Interlocking type
Power Rating [KVA]0.016
Power Rating [KVAR]
Utilisation categoryAC-15, DC-13
Control Circuit Voltage Uc48 V
Pole and Throw Configuration2P
Contact Current Rating [AC]10
Depth55.5 mm
Power Rating [kW]0.0014
Contact Voltage Rating [VDC]
Number of Poles1
SeriesTesSys CA2K
Contact Current Rating [DC]
Normal State Configuration1 NC, 1 NO
