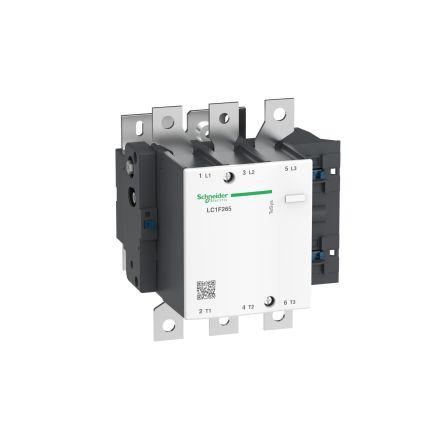

Schneider Schneider Electric TeSys F LC1F Contactor, 3 Pole, 265 A, 140 kW, 3NO

RS Stock No: 4198612

Mfr Part No: LC1F265

Brand: Schneider

Schneider Electric TeSys F LC1F Contactor, 3 Pole, 265 A, 140 kW, 3NO
Unavailable
Price unavailable
Add to RS basket
1

Technical Specifications

AttributeValue
Minimum Operating Temperature-5 °C
Maximum Operating Temperature+55 °C
Terminal TypeScrew
FunctionMotor Control, Resistive Load
Operational Current265 A
Mounting StyleScrew
Standards/ApprovalsCSA, CCC, EAC, IEC, UL, RoHS
Width201.5 mm
Length203 mm
BrandSchneider
Auxiliary Contact Configuration
Coil Voltage [VAC]400
ManufacturerSchneider
Number of Auxiliary Contacts3
Contact Voltage Rating [VAC]1000
Contactor ApplicationMotor Control, Resistive Load
Coil Voltage [VDC]
Interlocking type
Power Rating [KVA]0.7
Power Rating [KVAR]
Utilisation categoryAC-1
Control Circuit Voltage Uc400 V
Pole and Throw Configuration3P
Contact Current Rating [AC]265
Depth213 mm
Power Rating [kW]140
Contact Voltage Rating [VDC]
Number of Poles3
SeriesLC1F
Contact Current Rating [DC]
Normal State Configuration3 NO
