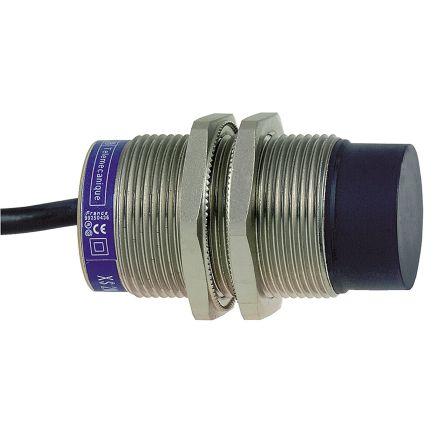

Schneider Telemecanique Ind Sensor 30mm 1NO PNP 12-48V 5m XS630B4PAL5

0 in stock

£66.77(exc. VAT)

£80.12(inc. VAT)

Mfr part no: XS630B4PAL5

RS Stock No.: 1951878

Brand: Schneider Telemecanique

Technical Reference

Attribute	Value
Standards Met	UL Certified, CE Marked, CSA Certified, E2 Certified
Thread Size	M30
Terminal Type
Mounting Type	Non-Flush
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP68 - dust tight; water submersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Material Detected	Metal
Brand	Schneider Telemecanique
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	22 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	48 V
Minimum DC Supply Voltage	12 V
Maximum AC output current	200 mA
Electrical Connection	Cable
Dimensions	M30 x 66.1 mm
Length	66.1 mm
Series
