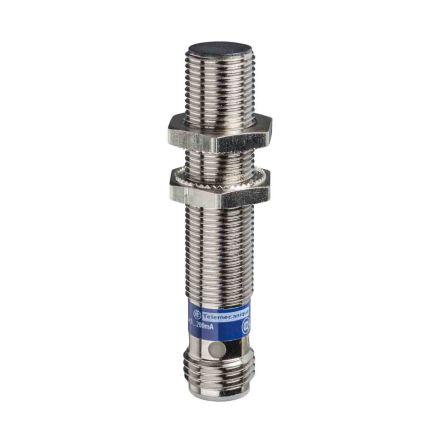

Schneider Telemecanique Induct Sensor 12mm NO 12-24V M12 XS512BSDAM12

4 in stock

£48.75(exc. VAT)

£58.50(inc. VAT)

Mfr part no: XS512BSDAM12

RS Stock No.: 1951849

Brand: Schneider Telemecanique

Technical Specifications

Attribute	Value
Standards Met	UL Certified, CE Marked, CSA Certified
Sensor Technology	Inductive
IP Rating	IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Shielded
Reverse Polarity Protection	Yes
Output Type	NO
Thread Size	M12
Terminal Type	4-Pin M12 Connector
Mounting Type	Flush
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Material Detected	Metal
Brand	Schneider Telemecanique
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	2 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Maximum AC output current	100 mA
Electrical Connection	Connector
Dimensions	M12 x 49.95 mm
Length	49.95 mm
Series	XS
