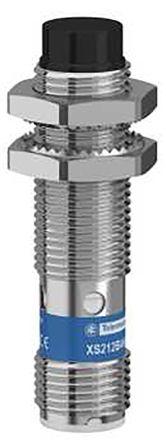

Schneider Telemecanique Inductive sensor M12 Sr 8mm XS212B4PBM12

27 in stock

£50.37(exc. VAT)

£60.44(inc. VAT)

Mfr part no: XS212B4PBM12

RS Stock No.: 1238622

Brand: Schneider Telemecanique

Technical Reference

Attribute	Value
Sensor Technology	Inductive
IP Rating	IP65 - dust tight; water jet protected, IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Thread Size	M12
Terminal Type	4-Pin M12 Connector
Mounting Type	Non-Flush
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Standards Met	UL Certified, CE Marked, CSA Certified, E2 Certified
Material Detected	Metal
Brand	Schneider Telemecanique
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	8 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Maximum AC output current	200 mA
Electrical Connection	Connector
Dimensions	M12 x 51 mm
Length	51 mm
Series
