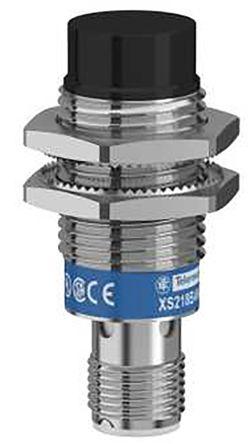

Schneider Telemecanique Inductive sensor M18 Sr 16mm XS218B4PBM12

0 in stock

£59.74(exc. VAT)

£71.69(inc. VAT)

Mfr part no: XS218B4PBM12

RS Stock No.: 1238614

Brand: Schneider Telemecanique

Technical Reference

Attribute	Value
Sensor Technology	Inductive
IP Rating	IP65 - dust tight; water jet protected, IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Standards Met	UL Certified, CE Marked, CSA Certified, E2 Certified
Thread Size	M18
Terminal Type	4-Pin M12 Connector
Mounting Type	Non-Flush
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Material Detected	Metal
Brand	Schneider Telemecanique
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	16 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Maximum AC output current	200 mA
Electrical Connection	Connector
Dimensions	M18 x 51 mm
Length	51 mm
Series
