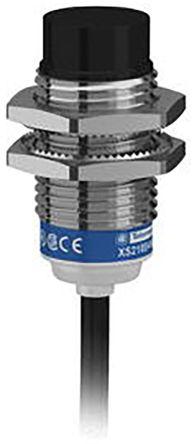

Schneider Telemecanique Inductive sensor M18 Sr 16mm XS218B4PAL2

0 in stock

£50.37(exc. VAT)

£60.44(inc. VAT)

Mfr part no: XS218B4PAL2

RS Stock No.: 1238619

Brand: Schneider Telemecanique

Technical Reference

Attribute	Value
Thread Size	M18
Terminal Type
Mounting Type	Non-Flush
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP65 - dust tight; water jet protected, IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Standards Met	UL Certified, CE Marked, CSA Certified, E2 Certified
Material Detected	Metal
Brand	Schneider Telemecanique
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	16 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Maximum AC output current	200 mA
Electrical Connection	Cable
Dimensions	M18 x 41 mm
Length	41 mm
Series
