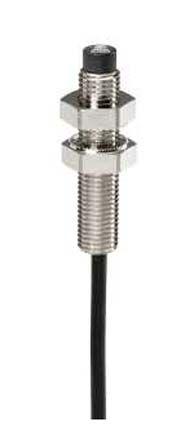

Schneider Telemecanique INDUCTIVE SENSOR M8 Sr 1.8mm XS108BLPAL5

3 in stock

£50.37(exc. VAT)

£60.44(inc. VAT)

Mfr part no: XS108BLPAL5

RS Stock No.: 1336304

Brand: Schneider Telemecanique

Technical Reference

Attribute	Value
Thread Size	M8
Terminal Type
Mounting Type	Non-Flush
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP65 - dust tight; water jet protected, IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Standards Met	UL Certified, IEC 60068-2-6, CE Marked, IEC 60529, CSA Certified, IEC 60068-2-27
Material Detected	Metal
Brand	Schneider Telemecanique
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	1.5 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Maximum AC output current	200 mA
Electrical Connection	Cable
Dimensions	M8 x 42 mm
Length	42 mm
Series
