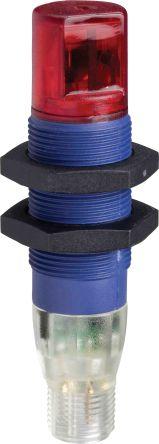

Schneider Telemecanique photo-electric sensor - XUB - reflex - 9 XUB1BPAWM12

0 in stock

£82.53(exc. VAT)

£99.04(inc. VAT)

Mfr part no: XUB1BPAWM12

RS Stock No.: 2201063

Brand: Schneider Telemecanique

Technical Specifications

Attribute	Value
Standards Met	UL Listed, CE Marked, CSA Certified
Sensor Technology	Photoelectric
IP Rating	IP65 - dust tight; water jet protected, IP67 - dust tight; water immersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	55 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP
Thread Size	M18
Terminal Type	4-Pin M12 Connector
Mounting Type
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Schneider Telemecanique
Detection Type	Retroreflective
Switching Mode
Light Source	Infrared
Hazardous Area Certification
Maximum Detection Range	4000 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	24 V
Minimum DC Supply Voltage	12 V
Electrical Connection	Connector
Dimensions
Length	46 mm
Series	XUB

Discover products which meet the same requirements in terms of sensing technology, protection level, detection range and key electrical properties.
