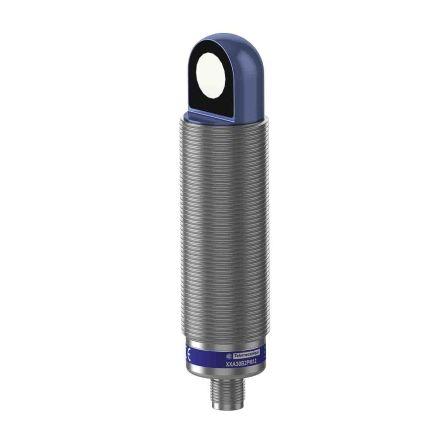

Schneider Telemecanique ULTRASONIC SENSOR M30 90 DEG SN=2M PNP XXA30B2PM12

0 in stock

£277.60(exc. VAT)

£333.12(inc. VAT)

Mfr part no: XXA30B2PM12

RS Stock No.: 2009225

Brand: Schneider Telemecanique

Technical Specifications

Attribute	Value
Sensor Technology	Ultrasonic
IP Rating	IP65 - dust tight; water jet protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP
Thread Size	M12
Terminal Type	5-Pin M12 Connector
Mounting Type
Housing Material	Nickel-Plated Brass
Body Style	Barrel
Standards Met	UL Certified, CSA Certified, EN/IEC 60947-5-2
Material Detected	Plastic - Transparent, Glass - Transparent, Metal, Plastic - Opaque, Plastic - Translucent, Glass - Opaque, Glass - Translucent
Brand	Schneider Telemecanique
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	1000 mm
Minimum Detection Range	155 mm
Maximum DC Supply Voltage	24 V
Electrical Connection	Connector
Dimensions	M12 x 129.6 mm
Length	129.6 mm
Series	XXA30
