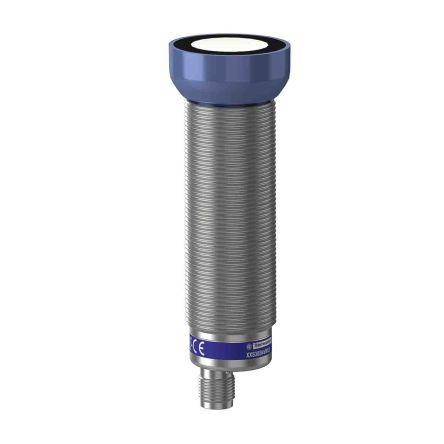

Schneider Telemecanique ULTRASONIC SENSOR M30 SN=4M 4-20MA XXS30S4AM12

0 in stock

£337.34(exc. VAT)

£404.81(inc. VAT)

Mfr part no: XXS30S4AM12

RS Stock No.: 2009266

Brand: Schneider Telemecanique

Technical Specifications

Attribute	Value
Thread Size	M12
Terminal Type	5-Pin M12 Connector
Mounting Type
Housing Material	Stainless Steel
Body Style	Barrel
Sensor Technology	Ultrasonic
IP Rating	IP65 - dust tight; water jet protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	70 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	Analog
Standards Met	UL Certified, CSA Certified, EN/IEC 60947-5-2
Material Detected	Plastic - Transparent, Glass - Transparent, Metal, Plastic - Opaque, Plastic - Translucent, Glass - Opaque, Glass - Translucent
Brand	Schneider Telemecanique
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	4000 mm
Minimum Detection Range	420 mm
Maximum DC Supply Voltage	24 V
Electrical Connection	Connector
Dimensions	M12 x 119 mm
Length	119 mm
Series	XX30B
