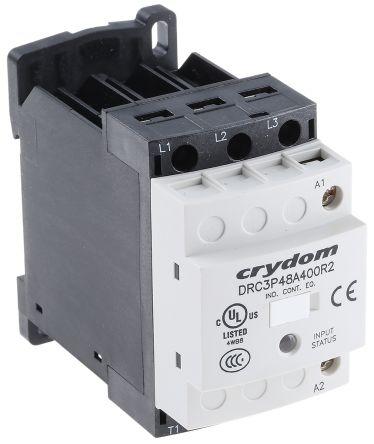

SOLID STATE CONTACTOR 3P 480V 7.6A 230V

Technical Specifications

Attribute	Value
Terminal Type	Screw
Auxiliary Contact Configuration
Number of Auxiliary Contacts
Load Voltage Range VAC	48-510
Contactor Application
Interlocking type
Minimum Load Voltage [VAC]	48
Maximum Operating Temperature [°C]	80
Control Voltage Range VAC	18-30
Minimum Operating Temperature [°C]	-30
Utilisation category
Max. Control Voltage [VAC]	265
Control Circuit Voltage Uc
Min. Control Voltage [VDC]
Pole and Throw Configuration	3PST
Maximum Load Current AC [A]	7.6
Power Rating [kW]	1.5
Number of Poles	3
Maximum Load Voltage [VDC]
Maximum Load Voltage [VAC]	510
Series	DRC
Maximum Load Current DC [A]
Load Output Type AC/DC	AC
Min. Control Voltage [VAC]	208
Normal State Configuration	3 NO
Length [mm]	45.31 mm
Control Input Type AC/DC	AC
Brand	Sensata/Crydom
Mounting Style	DIN Rail
Switching Type	Instantaneous Turn-On
