Please note: Some technical details are unavailable for this product

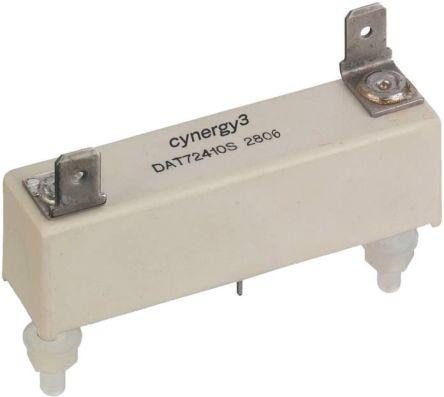

Sensata/Cynergy3 D SERIES FORMA HI-VOLTAGE REED RELAY,24V

RS Stock No: 4887659

Mfr Part No: DAT72410S

Brand: Sensata/Cynergy3

D SERIES FORMA HI-VOLTAGE REED RELAY,24V
Out of stock
£54.31(exc. VAT)
£65.17(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Terminal TypeQuick Connect
Mounting TypePCB
Standards MetUL
Product TypeReed Relay
Maximum Switching Voltage [AC]7000 V
Operating Time Including Bounce [ms]3 ms
Width [mm]15.8 mm
SeriesDAT
LatchingNo
GTIN
Special Features1x1014 Ohms minimum insulation resistance, Ideal for sensitive test and measurement circuits, which require low leakage current losses, Low contact resistance, PCB or flying leads connections
Contact Resistance [mΩ]250 mOhm
Relay Switching ClassificationGeneral Purpose Relay
Minimum Operating Temperature [°C]-20 °C
Life10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Operating Temperature Range [°C]-20 to 70 °C
Number of Poles1
Dimensions [mm]60 x 15.8 x 18.5 mm
Coil Power [W]50 W
Contact MaterialTungsten
Maximum Operating Temperature [°C]70 °C
Maximum Switching Power DC [W]50 W
Isolation Coil To Contact [kV]17 kV
Depth [mm]15.8 mm
Height [mm]18.5 mm
Length [mm]60 mm
Maximum Switching Voltage [DC]7000 V
Maximum Switching Current DC [A]2 A
Maximum Switching Current AC [A]2 A
Coil Voltage [VDC]24 V
Contact ConfigurationSPST-NO
