Terminal Type | Through Hole |
Mounting Type | PCB |
Standards Met | UL |

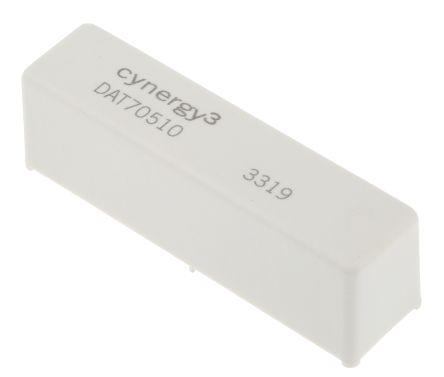

Product Type | Reed Relay |
Maximum Switching Voltage [AC] | 7000 V |
Operating Time Including Bounce [ms] | 3 ms |
Width [mm] | 15.8 mm |
Series | DAT |
Latching | No |
GTIN | EAN-13 5059040029859 |
Special Features | or 1/4” spade terminals, HV connections via flying leads, Low contact resistance, PCB or panel mount, 10kV or 15kV Isolation, Excellent AC Characteristics, solder turret (wire wrap) |
Contact Resistance [mΩ] | 250 mOhm |
Relay Switching Classification | General Purpose Relay |
Minimum Operating Temperature [°C] | -20 °C |
Life | 10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles |
Operating Temperature Range [°C] | -20 to 70 °C |
Number of Poles | 1 |
Dimensions [mm] | 60 x 15.8 x 18.5 mm |
Coil Power [W] | 50 W |
Contact Material | Tungsten |
Maximum Operating Temperature [°C] | 70 °C |
Maximum Switching Power DC [W] | 50 W |
Isolation Coil To Contact [kV] | 17 kV |
Depth [mm] | 15.8 mm |
Height [mm] | 18.5 mm |
Length [mm] | 60 mm |
Maximum Switching Voltage [DC] | 7000 V |
Maximum Switching Current DC [A] | 2 A |
Maximum Switching Current AC [A] | 2 A |
Coil Voltage [VDC] | 5 V |
Contact Configuration | SPST-NO |
