Please note: Some technical details are unavailable for this product

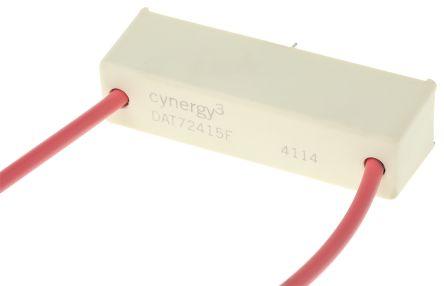

Sensata/Cynergy3 H/V REED RELAY WITH LEAD, 15KV, 24VDC

RS Stock No: 7121173

Mfr Part No: DAT72415F

Brand: Sensata/Cynergy3

H/V REED RELAY WITH LEAD, 15KV, 24VDC
In stock - 7
£74.53(exc. VAT)
£89.44(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Standards MetUL
Terminal TypeFlying Lead
Mounting TypePCB
Product TypeReed Relay
Maximum Switching Voltage [AC]3500 V
Operating Time Including Bounce [ms]3 ms
Width [mm]15.8 mm
SeriesDAT
LatchingNo
GTINEAN-13 5059040031227
Special Features1x1014 Ohms minimum insulation resistance, Ideal for sensitive test and measurement circuits, which require low leakage current losses, Low contact resistance, PCB or flying leads connections
Contact Resistance [mΩ]250 mOhm
Relay Switching ClassificationPower Relay
Minimum Operating Temperature [°C]-20 °C
Life10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Operating Temperature Range [°C]-20 to 70 °C
Number of Poles1
Dimensions [mm]60 x 15.8 x 18.5 mm
Coil Power [W]50 W
Contact MaterialTungsten
Maximum Operating Temperature [°C]70 °C
Maximum Switching Power DC [W]50 W
Isolation Coil To Contact [kV]17 kV
Depth [mm]15.8 mm
Height [mm]18.5 mm
Length [mm]60 mm
Maximum Switching Voltage [DC]3500 V
Maximum Switching Current DC [A]2 A
Maximum Switching Current AC [A]2 A
Coil Voltage [VDC]24 V
Contact ConfigurationSPST-NO
