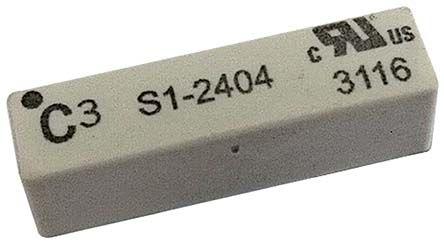

REED RELAY, 24V COIL W/DIODE, SCREENED

Technical Specifications

Attribute	Value
Standards Met	UR
Terminal Type	PCB Pin
Mounting Type	PCB
Product Type	Reed Relay
Maximum Switching Voltage [AC]	300 V
Operating Time Including Bounce [ms]	1 ms
Width [mm]	6.2 mm
Series	S1
Latching	No
GTIN
Special Features	4kV isolation voltage across contacts, Space Saving, Single in-line package
Contact Resistance [mΩ]	100 mOhm
Relay Switching Classification	General Purpose Relay
Minimum Operating Temperature [°C]	-40 °C
Life	10^9 (Dry) operations
Operating Temperature Range [°C]	-40 to 85 °C
Number of Poles	1
Dimensions [mm]	24.1 x 6.2 x 8.1 mm
Coil Power [W]	100 W
Contact Material	Rhodium
Maximum Operating Temperature [°C]	85 °C
Maximum Switching Power DC [W]
Isolation Coil To Contact [kV]	5 kV
Depth [mm]	6.2 mm
Height [mm]	8.1 mm
Length [mm]	24.1 mm
Maximum Switching Voltage [DC]	350 V
Maximum Switching Current DC [A]	1 A
Maximum Switching Current AC [A]	1 A
Coil Voltage [VDC]	24 V
Contact Configuration	SPST
