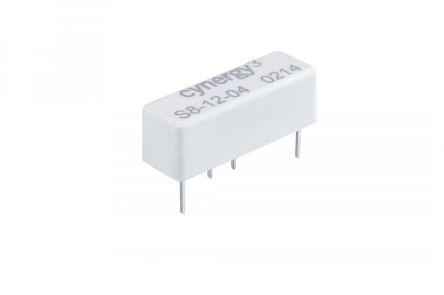

Sensata/Cynergy3 REED RELAY, 24V DC COIL, 1KV SWITCH

RS Stock No: 1245065

Mfr Part No: S8-2405V/RS

Brand: Sensata/Cynergy3

REED RELAY, 24V DC COIL, 1KV SWITCH
In stock - 37
£16.64(exc. VAT)
£19.97(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Standards MetUR
Terminal TypePCB Pin
Mounting TypePCB
Product TypeReed Relay
Maximum Switching Voltage [AC]1000 V
Operating Time Including Bounce [ms]1 ms
Width [mm]10 mm
SeriesS8
LatchingNo
GTIN
Special FeaturesIsolation Voltage across contacts 4kV or 5kV (dependent on coil voltage), Space saving package
Contact Resistance [mΩ]150 mOhm
Relay Switching ClassificationGeneral Purpose Relay
Minimum Operating Temperature [°C]-40 °C
Life10^7 (100 W) operations, 10^9 (Dry) operations
Operating Temperature Range [°C]-40 to 85 °C
Number of Poles1
Dimensions [mm]30 x 10 x 12 mm
Coil Power [W]100 W
Contact MaterialRhodium
Maximum Operating Temperature [°C]85 °C
Maximum Switching Power DC [W]100 W
Isolation Coil To Contact [kV]7 kV
Depth [mm]10 mm
Height [mm]12 mm
Length [mm]30 mm
Maximum Switching Voltage [DC]1000 V
Maximum Switching Current DC [A]1 A
Maximum Switching Current AC [A]1 A
Coil Voltage [VDC]24 V
Contact ConfigurationSPST
