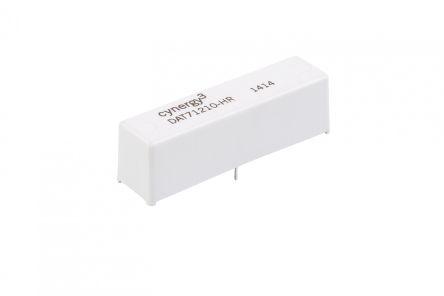

REED RELAY, 24V SPNC TUNGSTEN, PCB

Technical Specifications

Attribute	Value
Standards Met	UR
Terminal Type	PCB Pin
Mounting Type	PCB
Product Type	Reed Relay
Maximum Switching Voltage [AC]	7000 V
Operating Time Including Bounce [ms]	2 ms
Width [mm]	15.8 mm
Series	DBT
Latching	No
GTIN
Special Features	Low contact resistance, PCB or flying leads connections
Contact Resistance [mΩ]	250 mOhm
Relay Switching Classification	General Purpose Relay
Minimum Operating Temperature [°C]	-20 °C
Life	10^6 (Dry) operations, 10^6 (50 W) operations
Operating Temperature Range [°C]	-20 to 70 °C
Number of Poles	1
Dimensions [mm]	60 x 15.8 x 18.5 mm
Coil Power [W]	50 W
Contact Material	Tungsten
Maximum Operating Temperature [°C]	70 °C
Maximum Switching Power DC [W]	50 W
Isolation Coil To Contact [kV]	17 kV
Depth [mm]	15.8 mm
Height [mm]	18.5 mm
Length [mm]	60 mm
Maximum Switching Voltage [DC]	7000 V
Maximum Switching Current DC [A]	2 A
Maximum Switching Current AC [A]	2 A
Coil Voltage [VDC]	24 V
Contact Configuration	SPST-NC
