| Standards Met | UL |
| Terminal Type | PCB Pin |
| Mounting Type | PCB |

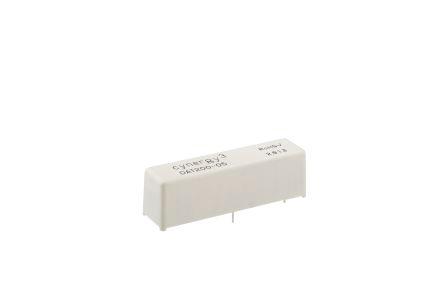

| Product Type | Reed Relay |
| Maximum Switching Voltage [AC] | 2500 V |
| Operating Time Including Bounce [ms] | 6 ms |
| Width [mm] | 15.8 mm |
| Series | DAT |
| Latching | No |
| GTIN | EAN-13 5059040028449 |
| Special Features | PCB Mount, 200W switching power, 7kV Isolation across contacts, Excellent AC characteristics, Low contact resistance |
| Contact Resistance [mΩ] | 600 mOhm |
| Relay Switching Classification | Reed |
| Minimum Operating Temperature [°C] | -20 °C |
| Life | 10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles |
| Operating Temperature Range [°C] | -20 to 70 °C |
| Number of Poles | 1 |
| Dimensions [mm] | 60 x 15.8 x 18.5 mm |
| Coil Power [W] | 200 W |
| Contact Material | Tungsten |
| Maximum Operating Temperature [°C] | 70 °C |
| Maximum Switching Power DC [W] | 200 W |
| Isolation Coil To Contact [kV] | 17 kV |
| Depth [mm] | 15.8 mm |
| Height [mm] | 18.5 mm |
| Length [mm] | 60 mm |
| Maximum Switching Voltage [DC] | 2500 V |
| Maximum Switching Current DC [A] | 3 A |
| Maximum Switching Current AC [A] | 3 A |
| Coil Voltage [VDC] | 12 V |
| Contact Configuration | SPST-NO |
