Please note: Some technical details are unavailable for this product

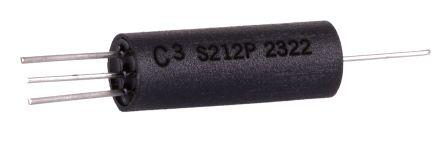

Sensata/Cynergy3 RELAY REED AXIAL 12V 50W 0.5KV ISOLATE

RS Stock No: 8172279

Mfr Part No: S2-12P

Brand: Sensata/Cynergy3

RELAY REED AXIAL 12V 50W 0.5KV ISOLATE
Out of stock
£12.03(exc. VAT)
£14.44(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Terminal TypeAxial
Mounting TypePCB
Standards MetUR
Product TypeReed Relay
Maximum Switching Voltage [AC]300 V
Operating Time Including Bounce [ms]1 ms
Width [mm]4 mm
SeriesS1
LatchingNo
GTINEAN-13 5059040028432
Special FeaturesReliable reed switch contacts, Variable mounting Options
Contact Resistance [mΩ]80 mOhm
Relay Switching ClassificationGeneral Purpose Relay
Minimum Operating Temperature [°C]-40 °C
Life10^7 (50 W) operations, 10^9 (Dry) operations
Operating Temperature Range [°C]-40 to 85 °C
Number of Poles1
Dimensions [mm]7.62 x 22.86 mm
Coil Power [W]70 W
Contact MaterialRhodium
Maximum Operating Temperature [°C]85 °C
Maximum Switching Power DC [W]50 W
Isolation Coil To Contact [kV]1 kV
Depth [mm]7.62 mm
Length [mm]22.86 mm
Maximum Switching Voltage [DC]350 V
Maximum Switching Current DC [A]0.7 A
Maximum Switching Current AC [A]0.5 A
Coil Voltage [VDC]12 V
Contact ConfigurationSPST
