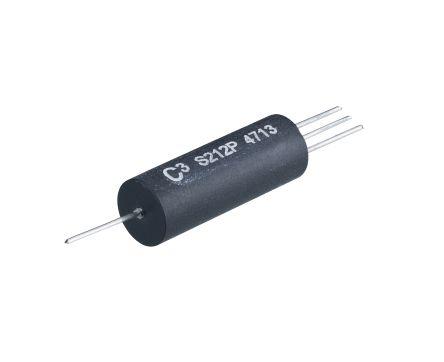

RELAY REED AXIAL 24V 100W 1KV ISOLATE

Technical Specifications

Attribute	Value
Standards Met	UR
Terminal Type	PCB Pin
Mounting Type	PCB
Product Type	Reed Relay
Maximum Switching Voltage [AC]	300 V
Operating Time Including Bounce [ms]	1 ms
Width [mm]	4 mm
Series	S1
Latching	No
GTIN	EAN-13 5059040028418
Special Features	Reliable reed switch contacts, Variable mounting Options
Contact Resistance [mΩ]	80 mOhm
Relay Switching Classification
Minimum Operating Temperature [°C]	-40 °C
Life	10^7 (50 W) operations, 10^9 (Dry) operations
Operating Temperature Range [°C]	-40 to 85 °C
Number of Poles	1
Dimensions [mm]	7.62 x 22.86 mm
Coil Power [W]	100 W
Contact Material	Rhodium
Maximum Operating Temperature [°C]	85 °C
Maximum Switching Power DC [W]
Isolation Coil To Contact [kV]	1 kV
Depth [mm]	7.62 mm
Length [mm]	22.86 mm
Maximum Switching Voltage [DC]	350 V
Maximum Switching Current DC [A]	1 A
Maximum Switching Current AC [A]
Coil Voltage [VDC]	24 V
Contact Configuration	SPST
