Please note: Some technical details are unavailable for this product

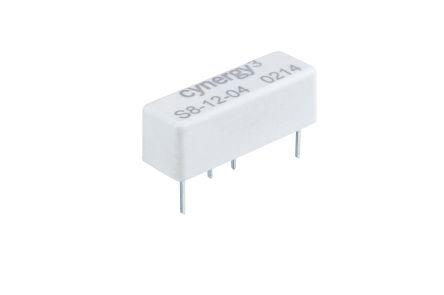

Sensata/Cynergy3 RELAY REED HIGH VOLTAGE 12V 4KV ISOLATE

RS Stock No: 8172291

Mfr Part No: S8-1204

Brand: Sensata/Cynergy3

RELAY REED HIGH VOLTAGE 12V 4KV ISOLATE
In stock - 45
£11.53(exc. VAT)
£13.84(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Standards MetUR
Terminal TypePCB Pin
Mounting TypePCB
Product TypeReed Relay
Maximum Switching Voltage [AC]1000 V
Operating Time Including Bounce [ms]1 ms
Width [mm]10 mm
SeriesS8
LatchingNo
GTINEAN-13 5059040027848
Special FeaturesIsolation Voltage across contacts 4kV or 5kV (dependent on coil voltage), Space saving package
Contact Resistance [mΩ]150 mOhm
Relay Switching Classification
Minimum Operating Temperature [°C]-40 °C
Life10^7 (100 W) operations, 10^9 (Dry) operations
Operating Temperature Range [°C]-40 to 85 °C
Number of Poles1
Dimensions [mm]30 x 10 x 11.5 mm
Coil Power [W]100 W
Contact MaterialRhodium
Maximum Operating Temperature [°C]85 °C
Maximum Switching Power DC [W]100 W
Isolation Coil To Contact [kV]7 kV
Depth [mm]10 mm
Height [mm]11.5 mm
Length [mm]30 mm
Maximum Switching Voltage [DC]1000 V
Maximum Switching Current DC [A]1 A
Maximum Switching Current AC [A]1 A
Coil Voltage [VDC]12 V
Contact ConfigurationSPST
