Please note: Some technical details are unavailable for this product

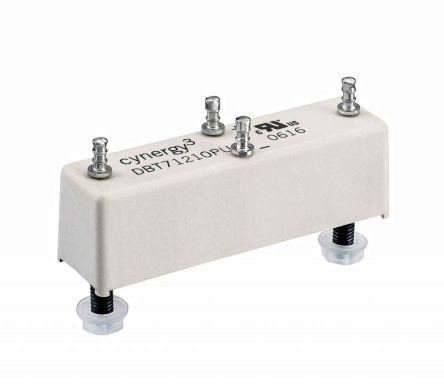

Sensata/Cynergy3 SPST N/C 5KV ISOLATION 12V COIL (PANEL M

RS Stock No: 1892190

Mfr Part No: DBT71205PU

Brand: Sensata/Cynergy3

SPST N/C 5KV ISOLATION 12V COIL (PANEL M
In stock - 1
£898.27(exc. VAT)
£1,077.92(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Terminal TypeWire wrap
Mounting TypePanel
Standards MetUR
Product TypeReed Relay
Maximum Switching Voltage [AC]7000 V
Operating Time Including Bounce [ms]2 ms
Width [mm]15.8 mm
SeriesDBT
LatchingNo
GTIN
Special Featuresor 1/4in spade terminals, HV connections via flying leads, Excellent AC characteristics, Low contact resistance, PCB or panel mount, solder turret (wire wrap)
Contact Resistance [mΩ]50 mOhm
Relay Switching ClassificationGeneral Purpose Relay
Minimum Operating Temperature [°C]-20 °C
Life10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Operating Temperature Range [°C]-20 to 70 °C
Number of Poles1
Dimensions [mm]60 x 15.8 x 18.5 mm
Coil Power [W]50 W
Contact MaterialTungsten
Maximum Operating Temperature [°C]70 °C
Maximum Switching Power DC [W]50 W
Isolation Coil To Contact [kV]17 kV
Depth [mm]15.8 mm
Height [mm]18.5 mm
Length [mm]60 mm
Maximum Switching Voltage [DC]7000 V
Maximum Switching Current DC [A]2 A
Maximum Switching Current AC [A]2 A
Coil Voltage [VDC]12 V
Contact ConfigurationSPST-NC
