| Terminal Type | Wire wrap |
| Mounting Type | Panel |
| Standards Met | UL |

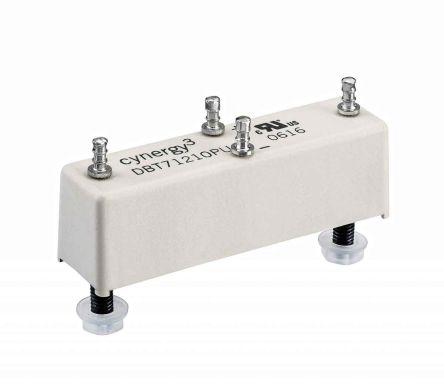

| Product Type | Reed Relay |
| Maximum Switching Voltage [AC] | 7000 V |
| Operating Time Including Bounce [ms] | 3 ms |
| Width [mm] | 15.8 mm |
| Series | DAT |
| Latching | No |
| GTIN | EAN-13 5059045835967 |
| Special Features | Choice of 10kV, PCB or Panel mΩunt, Low Contact Resistance, 7.5kV or 5kV Isolation, Excellent AC Characteristics |
| Contact Resistance [mΩ] | 250 mOhm |
| Relay Switching Classification | General Purpose Relay |
| Minimum Operating Temperature [°C] | -20 °C |
| Life | 10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles |
| Operating Temperature Range [°C] | -20 to 70 °C |
| Number of Poles | 1 |
| Dimensions [mm] | 60 x 15.8 x 18.5 mm |
| Coil Power [W] | 50 W |
| Contact Material | Tungsten |
| Maximum Operating Temperature [°C] | 70 °C |
| Maximum Switching Power DC [W] | 50 W |
| Isolation Coil To Contact [kV] | 17 kV |
| Depth [mm] | 15.8 mm |
| Height [mm] | 18.5 mm |
| Length [mm] | 60 mm |
| Maximum Switching Voltage [DC] | 7000 V |
| Maximum Switching Current DC [A] | 2 A |
| Maximum Switching Current AC [A] | 2 A |
| Coil Voltage [VDC] | 5 V |
| Contact Configuration | SPST-NO |
