Please note: Some technical details are unavailable for this product

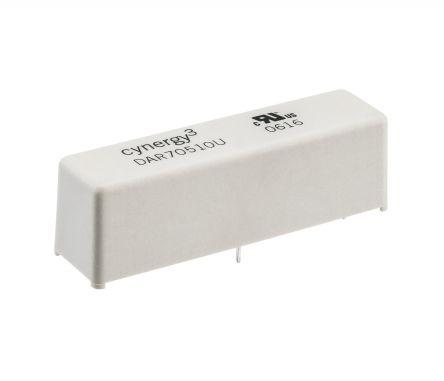

Sensata/Cynergy3 SPST NO REED RELAY 5V COIL, UL APPROVED

RS Stock No: 1245099

Mfr Part No: DAT70510U/RS

Brand: Sensata/Cynergy3

SPST NO REED RELAY 5V COIL, UL APPROVED
Out of stock
£50.92(exc. VAT)
£61.10(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Standards MetUL
Terminal TypePCB Pin, spade
Mounting TypePCB
Product TypeReed Relay
Maximum Switching Voltage [AC]7000 V
Operating Time Including Bounce [ms]3 ms
Width [mm]15.8 mm
SeriesDAT
LatchingNo
GTIN
Special Featuresor 1/4in spade terminals, Choice of 10kV, HV connections via flying leads, 7.5kV or 5kV Isolation, Low contact resistance, PCB or panel mount, Excellent AC Characteristics, solder turret (wire wrap)
Contact Resistance [mΩ]250 mOhm
Relay Switching ClassificationGeneral Purpose Relay
Minimum Operating Temperature [°C]-20 °C
Life10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Operating Temperature Range [°C]-20 to 70 °C
Number of Poles1
Dimensions [mm]60 x 15.8 x 18.5 mm
Coil Power [W]50 W
Contact MaterialTungsten
Maximum Operating Temperature [°C]70 °C
Maximum Switching Power DC [W]50 W
Isolation Coil To Contact [kV]17 kV
Depth [mm]15.8 mm
Height [mm]18.5 mm
Length [mm]60 mm
Maximum Switching Voltage [DC]7000 V
Maximum Switching Current DC [A]2 A
Maximum Switching Current AC [A]2 A
Coil Voltage [VDC]5 V
Contact ConfigurationSPST-NO
