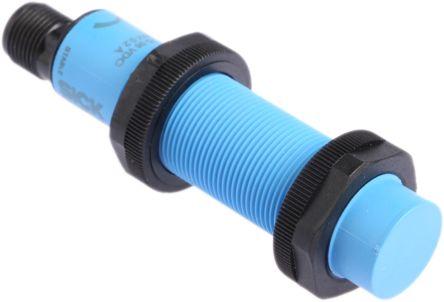

Sick Capacitive Sensor M18 SR 12mm CM18-12NPP-EC1

3 in stock

£103.11(exc. VAT)

£123.73(inc. VAT)

Mfr part no: CM18-12NPP-EC1

RS Stock No.: 1278119

Brand: Sick

Technical Reference

Attribute	Value
Thread Size	M18
Terminal Type	4-Pin M12 Connector
Mounting Type	Non-Flush
Housing Material	Plastic
Body Style	Barrel
Standards Met	cULus Certified, EcoLab Certified, CE Marked, CSA Certified
Sensor Technology	Capacitive
IP Rating	IP68 - dust tight; water submersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-30 °C
Maximum Operating Temperature	85 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	PNP
Material Detected
Brand	Sick
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	12 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	36 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	200 mA
Electrical Connection	Connector
Dimensions	M18 x 85 mm
Length	85 mm
Series	CM
