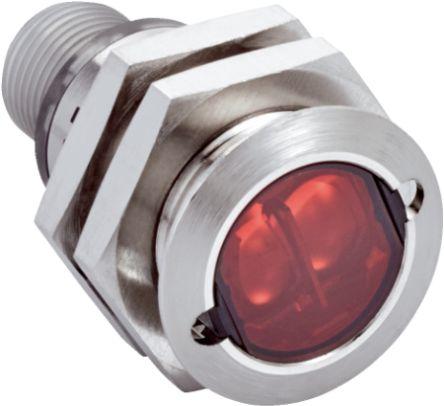

Sick Cylindrical photoelectric sensors , GRL GRL18S-F233Y

2 in stock

£62.44(exc. VAT)

£74.93(inc. VAT)

Mfr part no: GRL18S-F233Y

RS Stock No.: 2054796

Brand: Sick

Technical Reference

Attribute	Value
Standards Met	UL Certified, CE Marked
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	55 °C
Shielding	Shielded
Reverse Polarity Protection
Output Type	PNP
Thread Size	M18
Terminal Type	3-Pin M12 Connector
Mounting Type	Flush
Housing Material	Metal
Body Style	Barrel
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Retroreflective
Switching Mode	Dark Switching
Light Source	LED
Hazardous Area Certification
Maximum Detection Range	7200 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions
Length	38.1 mm
Width	18 mm
Height	18 mm
Series	GR18S
