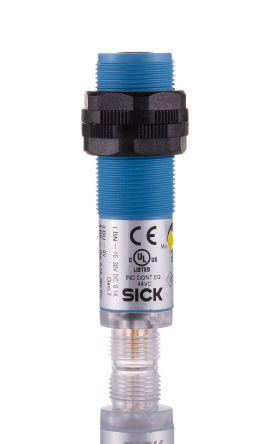

Sick Cylindrical Sensor VTE180-2F32447 VTE180-2F32447

5 in stock

£74.26(exc. VAT)

£89.11(inc. VAT)

Mfr part no: VTE180-2F32447

RS Stock No.: 2123191

Brand: Sick

Technical Reference

Attribute	Value
Thread Size	M12
Terminal Type	3-Pin M12 Connector
Mounting Type
Housing Material	Plastic
Body Style	Barrel
Standards Met	UL Certified, CE Marked
Sensor Technology	Photoelectric
IP Rating	IP67 - dust tight; water immersion protected
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	55 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Energetic
Switching Mode	Light Switching
Light Source	LED
Hazardous Area Certification
Maximum Detection Range	500 mm
Minimum Detection Range	1 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	18 x 18 x 69.8 mm
Length	69.8 mm
Width	18 mm
Height	18 mm
Series	V180-2
