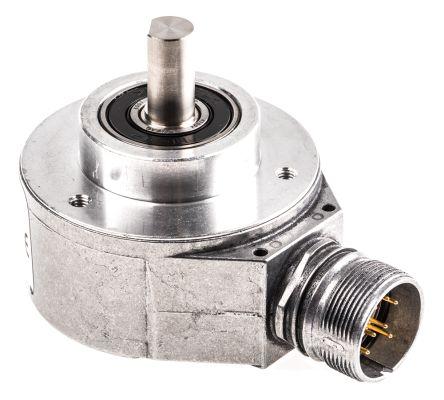

Sick Encoder, Face mount, 10mm shaft, M23

RS Stock No: 7125424

Mfr Part No: DFS60B-S4PA10000

Brand: Sick

Encoder, Face mount, 10mm shaft, M23
Unavailable
£300.83(exc. VAT)
£361.00(inc. VAT)
Buy from RS Online

Technical Reference

Technical Specifications

AttributeValue
Mounting Type
Thread Size
Terminal Type
Housing Material
Body Style
Standards Met
Supply Voltage5 - 32 Vdc
Output Type
Maximum Operating Temperature100
Minimum Operating Temperature-20
IP RatingIP65, IP67
ManufacturerSick
Body Material
Weight
Pulses Per Revolution10000
Device Type
Series
Media Monitored
Measurement Range
Shaft Diameter10 mm
Output Signal TypeHTL, TTL
Pressure Reading Type
Maximum Current
Hazardous Area Certification
Material
Operating Temperature Range
Gasket Material
Calibrated
BrandSick
Stroke
Overall Height40.1
Minimum Media Temperature
Resolution
Analogue Output
Communication Protocol
Response Time
Process Connection
For Use With
Switching Frequency600 kHz
Media Measured
Temperature Range
Shaft TypeSolid
Interface
Cable Length
Connection Type
Minimum Pressure Reading
Switch Output
Accuracy
Minimum Flow Rate
Dimensions
Maximum Pressure
Pipe Diameter Range
Maximum Media Temperature
Maximum Flow Rate
Number of Axis
Encoder TechnologyIncremental
Electrical Connection
