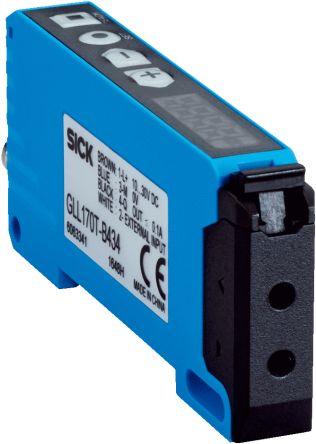

Fibre Optic Sensor GLL170T-B434

Technical Specifications

Attribute	Value
Mounting Type
Housing Material	Plastic
Supply Voltage	30 V
Output Type	NPN/PNP
Maximum Operating Temperature	+55 °C
Minimum Operating Temperature	-25 °C
IP Rating	IP66
Detection Range	1320 mm
Standards Met
Manufacturer	Sick
Detection Type	Through Beam
Depth	71.9 mm
Light Source
Brand	Sick
Communication Interface
Response Time	0.005 ms
Switching Frequency	10000 Hz
Fibre Optic Type	Glass or Plastic
Power Consumption
Length	34.6 mm
Dimensions	34.6 x 10.5 x 71.9 mm
Width	10.5 mm
Electrical Connection	4-Pin Connector
