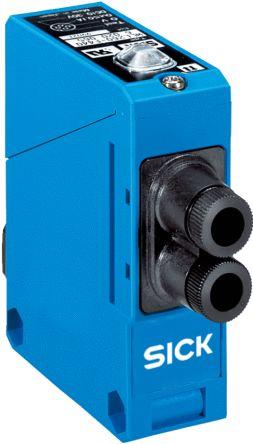

Fibre Optic Sensor WLL260-F440

Technical Reference

Attribute	Value
Mounting Type
Housing Material	Plastic
Supply Voltage	30 V
Output Type	PNP
Maximum Operating Temperature	+55 °C
Minimum Operating Temperature	-25 °C
IP Rating	IP66
Detection Range	800 mm
Standards Met
Manufacturer	Sick
Detection Type	Through Beam
Depth	63 mm
Light Source
Brand	Sick
Communication Interface
Response Time	0.7 ms
Switching Frequency	700 Hz
Fibre Optic Type	Glass or Plastic
Power Consumption
Length	77.8 mm
Dimensions	77.8 x 25 x 63 mm
Width	25 mm
Electrical Connection	4-Pin Connector
