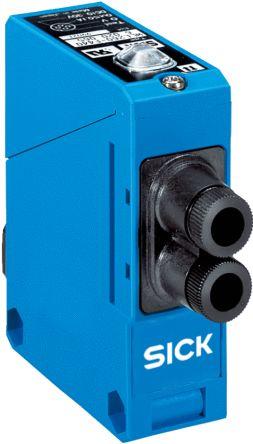

Fibre Optic Sensor WLL260-R240

Technical Reference

Attribute	Value
Mounting Type
Housing Material	Plastic
Standards Met
Supply Voltage	240 V
Output Type	Relay
Maximum Operating Temperature	+55 °C
Minimum Operating Temperature	-25 °C
IP Rating	IP66
Detection Range	800 mm
Manufacturer	Sick
Detection Type	Through Beam
Depth	63 mm
Light Source
Brand	Sick
Communication Interface
Response Time	20 ms
Switching Frequency	25 Hz
Fibre Optic Type	Glass or Plastic
Power Consumption
Length	77.8 mm
Dimensions	77.8 x 25 x 63 mm
Width	25 mm
Electrical Connection	Cable
