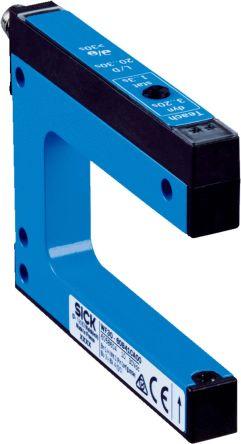

Fork sensor, IO-Link

Technical Reference

Attribute	Value
Standards Met	CE, cULus, VDE, EN 60068-2-27
Output Type	NO-NC
Maximum Operating Temperature	+60
Maximum DC Voltage	30
Minimum Operating Temperature	-20
IP Rating	IP65
Detection Range	42
Mounting Type	Panel Mount
Thread Size
Terminal Type	M8 4-Pin Connector
Housing Material	Aluminium
Body Style	Fork
Manufacturer	Sick
Optical Technology	Infrared LED
Detection Type	Through Beam
Series	WF
Sensor Type	Fork
Light Source	Infrared LED
Maximum Current	20
Hazardous Area Certification
Switching Mode
Brand	Sick
Communication Interface	IO-Link
Response Time	0.046
Electrical Connection	M8 4 Pin Connector
