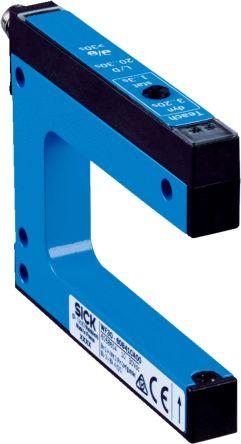

Sick Fork sensor, IO-Link WF50-60B41CA71

0 in stock

£297.04(exc. VAT)

£356.45(inc. VAT)

Mfr part no: WF50-60B41CA71

RS Stock No.: 1347837

Brand: Sick

Technical Reference

Attribute	Value
Thread Size	M8
Terminal Type	4-Pin M8 Connector
Mounting Type	Panel Mount
Housing Material	Aluminium
Body Style	Fork
Standards Met	cULus Certified, VDE Certified, EN 60068-2-27, CE Marked
Sensor Technology	Optical
IP Rating	IP65 - dust tight; water jet protected
Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	60 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP/NPN
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Through Beam
Switching Mode	Light/Dark switching
Light Source	Infrared
Hazardous Area Certification
Maximum Detection Range	50 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	10 x 60 x 57 mm
Length	57 mm
Width	10 mm
Height	60 mm
Series	WF
