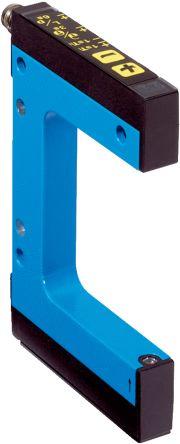

Sick Fork Sensor WFL30-40B416 WFL30-40B416

1 in stock

£357.59(exc. VAT)

£429.11(inc. VAT)

Mfr part no: WFL30-40B416

RS Stock No.: 2122631

Brand: Sick

Technical Reference

Attribute	Value
Thread Size	M8
Terminal Type	4-Pin M8 Connector
Mounting Type
Housing Material	Metal
Body Style	Fork
Standards Met	CE Marked
Sensor Technology	Optical
IP Rating	IP65 - dust tight; water jet protected
Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	50 °C
Shielding	N/A
Reverse Polarity Protection
Output Type	PNP/NPN
Material Detected	Metal, Plastic - Opaque, Glass - Opaque
Brand	Sick
Detection Type	Fork Sensor
Switching Mode	Light/Dark switching
Light Source	Laser
Hazardous Area Certification
Maximum Detection Range	30 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Electrical Connection	Connector
Dimensions	10 x 68.5 x 47 mm
Length	47 mm
Width	10 mm
Height	68.5 mm
Series	WFL
