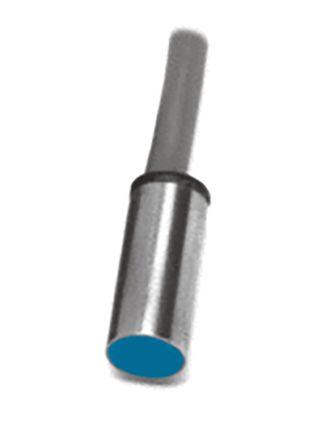

Sick IH06-1B5PS-VWK Inductive Proximity Senso IH06-1B5PS-VWK

18 in stock

£83.72(exc. VAT)

£100.46(inc. VAT)

Mfr part no: IH06-1B5PS-VWK

RS Stock No.: 1808420

Brand: Sick

Technical Reference

Attribute	Value
Supply Voltage	10 V to 30 V
Output Type	PNP
Maximum Operating Temperature	70 °C
Sensor Technology	Inductive
Shielding
Minimum Operating Temperature	-25 °C
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size
Terminal Type	2m Cable, 3-Wire
Housing Material	Stainless Steel (304 & V2A)
Body Style	Cylindrical
Manufacturer	Sick
Shape
Series
Hazardous Area Certification
Standards/Approvals
Brand	Sick
Supply Voltage DC Max	30 V
Application
Communication Interface
Sensing Distance	1.5 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current	200 mA
Short Circuit Overload Protection	Yes
Length	16 mm
Switching Frequency Max	5 kHz
Dimensions
Width	6.5 mm
Electrical Connection	3-Wire, 2 m Cable
