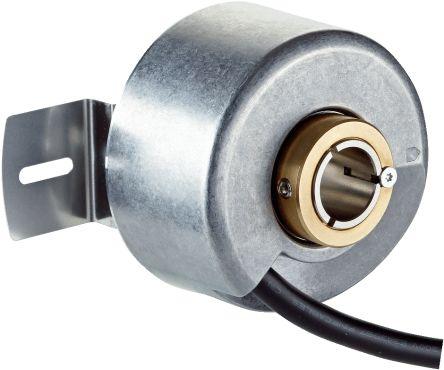

Incremental Encoder DBS60E-RJFK01024

Technical Reference

Attribute	Value
Mounting Type	Hollow Shaft Flange
Supply Voltage	4.5-30 Vdc
Output Type
Maximum Operating Temperature	+100 °C
Minimum Operating Temperature	-30 °C
IP Rating	IP65
Maximum Revolutions	9000 RPM
Manufacturer	Sick
Overall Width	58 mm
Current Rating
Pulses Per Revolution	1024
Series	DBS60 Core
Shaft Diameter	15.875 mm
Output Signal Type	HTL, TTL
Overall Depth	43.8 mm
Brand	Sick
Stroke
Overall Height	58 mm
Resolution
Switching Frequency
Shaft Type	Hollow
Interface
Connection Type	Cable
Encoder Technology	Incremental
