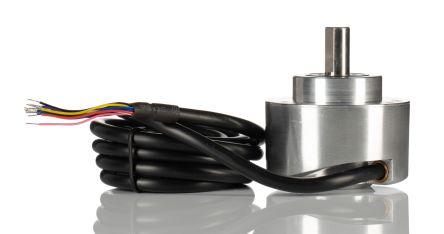

Incremental Encoder DBS60E-S4FK02048

Technical Reference

Attribute	Value
Supply Voltage	4.5-30 Vdc
Output Type
Maximum Operating Temperature	+100 °C
Minimum Operating Temperature	-30 °C
IP Rating	IP65
Mounting Type	Full Shaft
Maximum Revolutions	9000 RPM
Manufacturer	Sick
Overall Width	58 mm
Current Rating
Pulses Per Revolution	2048
Series	DBS60 Core
Shaft Diameter	10 mm
Output Signal Type	HTL, TTL
Overall Depth	44.35 mm
Brand	Sick
Stroke
Overall Height	58 mm
Resolution
Switching Frequency
Shaft Type	Solid
Interface
Connection Type	Cable
Encoder Technology	Incremental
