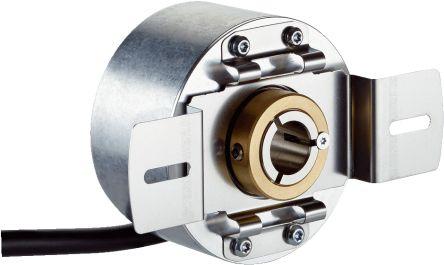

Sick Incremental Encoder DBS60E-TJFK02000

RS Stock No: 2125642

Mfr Part No: DBS60E-TJFK02000

Brand: Sick

Incremental Encoder DBS60E-TJFK02000
Out of stock
Price unavailable
Buy from RS Online

Technical Reference

Technical Specifications

AttributeValue
Mounting TypeHollow Shaft Flange
Supply Voltage4.5-30 Vdc
Output Type
Maximum Operating Temperature+100 °C
Minimum Operating Temperature-30 °C
IP RatingIP65
Maximum Revolutions9000 RPM
ManufacturerSick
Overall Width58 mm
Current Rating
Pulses Per Revolution2000
SeriesDBS60 Core
Shaft Diameter15.875 mm
Output Signal TypeHTL, TTL
Overall Depth41.8 mm
BrandSick
Stroke
Overall Height58 mm
Resolution
Switching Frequency
Shaft TypeHollow
Interface
Connection TypeCable
Encoder TechnologyIncremental
