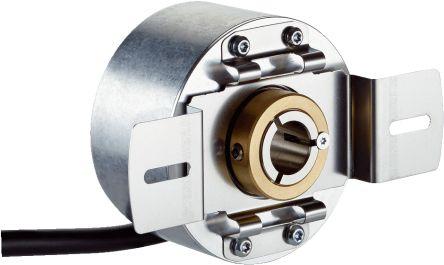

Incremental Encoder DBS60E-TJFK05000

Technical Reference

Attribute	Value
Mounting Type	Hollow Shaft Flange
Supply Voltage	4.5-30 Vdc
Output Type
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-30 °C
IP Rating	IP65
Maximum Revolutions	9000 RPM
Manufacturer	Sick
Overall Width	58 mm
Current Rating
Pulses Per Revolution	5000
Series	DBS60 Core
Shaft Diameter	15.875 mm
Output Signal Type	HTL, TTL
Overall Depth	41.8 mm
Brand	Sick
Stroke
Overall Height	58 mm
Resolution
Switching Frequency
Shaft Type	Hollow
Interface
Connection Type	Cable
Encoder Technology	Incremental
