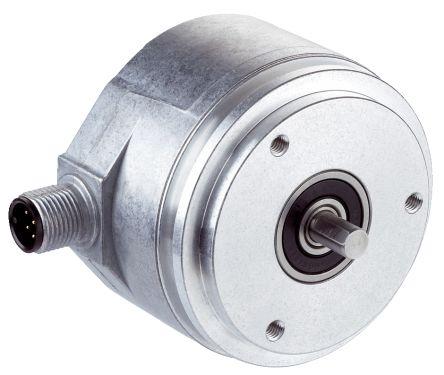

Incremental Encoder DFS60B-S1PC10000

Technical Reference

Attribute	Value
Supply Voltage	4.5-32 Vdc
Output Type
Maximum Operating Temperature	+100 °C
Minimum Operating Temperature	-30 °C
IP Rating	IP65
Mounting Type	Full Shaft
Maximum Revolutions	9000 RPM
Manufacturer	Sick
Overall Width	60 mm
Current Rating
Pulses Per Revolution	1-10000
Series	DFS60
Shaft Diameter	6 mm
Output Signal Type	HTL, TTL
Overall Depth	40.1 mm
Brand	Sick
Stroke
Overall Height	60 mm
Resolution
Switching Frequency
Shaft Type	Solid
Interface
Connection Type	Plug-In Connection
Encoder Technology	Incremental
