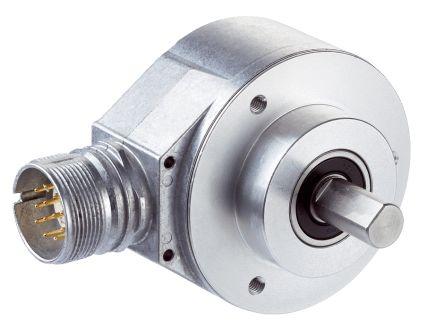

Incremental Encoder DFS60E-S4EA01024

Technical Specifications

Attribute	Value
Mounting Type	Full Shaft
Supply Voltage	10-32 Vdc
Output Type
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	0 °C
IP Rating	IP65
Maximum Revolutions	9000 RPM
Manufacturer	Sick
Overall Width	60 mm
Current Rating
Pulses Per Revolution	1024
Series	DFS60
Shaft Diameter	10 mm
Output Signal Type	HTL
Overall Depth	40.1 mm
Brand	Sick
Stroke
Overall Height	60 mm
Resolution
Switching Frequency
Shaft Type	Solid
Interface
Connection Type	Plug-In Connection
Encoder Technology	Incremental
