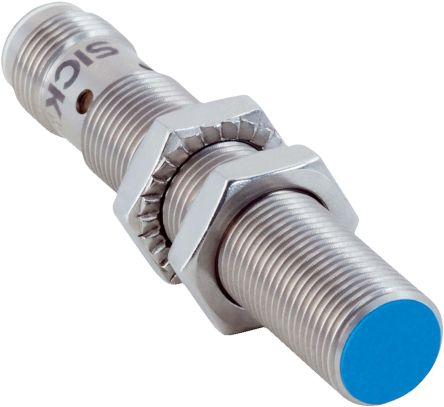

Sick Inductive prox sensor IMB12-04BNPVC0S IMB12-04BNPVC0S

11 in stock

£43.80(exc. VAT)

£52.56(inc. VAT)

Mfr part no: IMB12-04BNPVC0S

RS Stock No.: 2093269

Brand: Sick

Technical Reference

Attribute	Value
Standards Met	cULus Certified, EN 60947-5-2, CE Marked, EN 60529
Thread Size	M12
Terminal Type	4-Pin M12 Connector
Mounting Type	Flush
Housing Material	Stainless Steel
Body Style	Barrel
Sensor Technology	Inductive
IP Rating	IP68 - dust tight; water submersion protected, IP69K - dust tight; close-range high-pressure hot water protected
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	100 °C
Shielding	Unshielded
Reverse Polarity Protection	Yes
Output Type	NPN
Material Detected	Metal
Brand	Sick
Detection Type
Switching Mode
Light Source
Hazardous Area Certification
Maximum Detection Range	4 mm
Minimum Detection Range	0 mm
Maximum DC Supply Voltage	30 V
Minimum DC Supply Voltage	10 V
Maximum AC output current	200 mA
Electrical Connection	Connector
Dimensions	M12 x 65 mm
Length	65 mm
