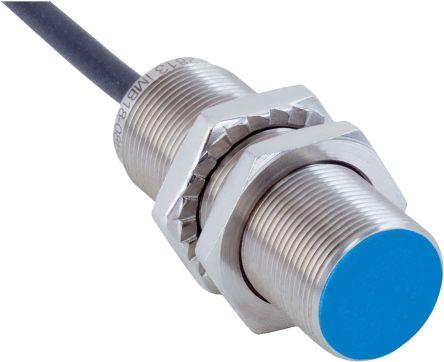

Sick Inductive prox sensor IMB18-08BNSVU2S IMB18-08BNSVU2S

1 in stock

£41.43(exc. VAT)

£49.72(inc. VAT)

Mfr part no: IMB18-08BNSVU2S

RS Stock No.: 2093303

Brand: Sick

Technical Reference

Attribute	Value
Mounting Type	Quasi-flush
Thread Size	M18 x 1
Terminal Type	4-Pin M12 Connector
Housing Material	Stainless Steel
Body Style	Cylindrical
Supply Voltage	10 V to 30 V
Output Type	NPN NO
Maximum Operating Temperature	100 °C
Sensor Technology	Inductive
Shielding
Minimum Operating Temperature	-40 °C
IP Rating	IP69K, IP68
Reverse Polarity Protection	Yes
Manufacturer	Sick
Shape
Series
Hazardous Area Certification
Standards/Approvals
Brand	Sick
Supply Voltage DC Max	30 V
Application
Communication Interface	IO-Link
Sensing Distance	8 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current	200 mA
Short Circuit Overload Protection	Yes
Length	50 mm
Switching Frequency Max	1 kHz
Dimensions
Width	18 mm
Electrical Connection	4-Pin M12 Connector
