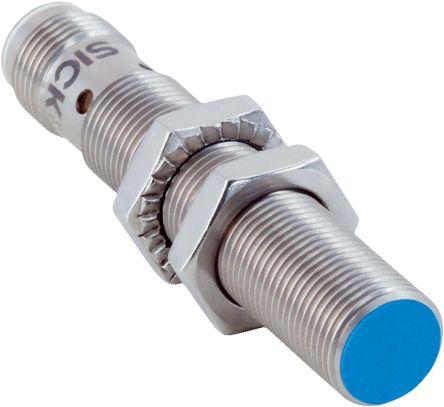

Inductive prox sensor IMC12-04BPPVC0SB02

Technical Specifications

Attribute	Value
Supply Voltage	10 to 30
Output Type	PNP-NO
Maximum Operating Temperature	75
Sensor Technology	Inductive
Shielding
IP Rating	IP69K, IP68
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M12 x 1
Housing Material	Stainless Steel
Body Style	Cylindrical
Manufacturer	Sick
Series
Depth
Standards/Approvals
Brand	Sick
Communication Interface	IO-Link
Sensing Distance	4 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	65
Dimensions
Electrical Connection	M8, 3-Pin
