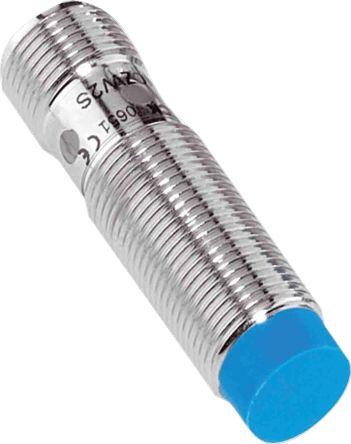

Inductive prox sensor IME12-04NNOZC0K

Technical Reference

Attribute	Value
Mounting Type	Non-Flush
Thread Size	M12 x 1
Housing Material	Metal
Body Style	Cylindrical
Supply Voltage	10 to 30
Output Type	NPN-NC
Maximum Operating Temperature	75
Sensor Technology	Inductive
Shielding
IP Rating	IP67
Reverse Polarity Protection	Yes
Manufacturer	Sick
Series
Depth
Standards/Approvals
Brand	Sick
Communication Interface
Sensing Distance	4 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	46
Dimensions
Electrical Connection	M12
